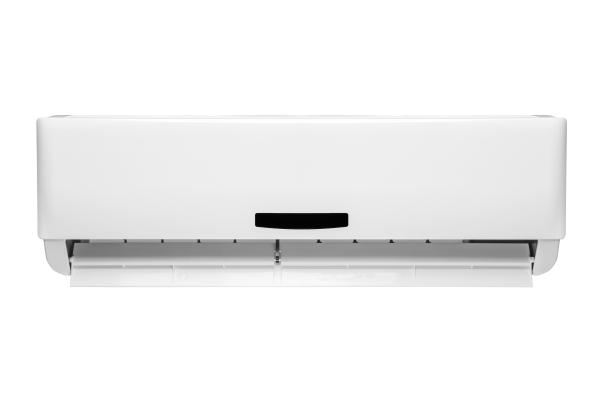

Name: 9000BTU Wall Mounted Air Conditioner For Small Room
Brand: YUETU or OEM
Price: 110 USD

Brand Name : YUETU or OEM

Model Number : 9000BTU

Certification : CE/BC

Place of Origin : CHINA

MOQ : 100pcs

Price : $110

Payment Terms : L/C, , T/T

Delivery Time : 35 work days after receipt of the deposit

Packaging Details : Standard export carton box package suitable for container shipment.

Compressor : GMCC/GREE/PANASONIC

connection : 100% copper pipe

Quality : High Quality

Certificaition : CE/CB

Brand : OEM/YUETU

Wind way : four direction

Contact Now

9000BTU Wall Mounted Air Conditioner For Small Room

DA Panel 220V R410a 9000BTU Split Type Air Conditioning Cooling Heating High Quality Wifi Control PCB 3 Year Warranty

			9000BTU
Model No.			YTA-09CH
			KFR-25GW
			indoor 770(Φ7.94×1)+outdoor700(Φ7.94×1)
Type			Heating Pump
Control type
Rated cooling capacity		Btu/h;W	8048;2359
Rated heating capacity		Btu/h;W	8632;2530
EER for cooling		Btu/h.w; W/W	2.48
COP for heating		W/W	2.7
Moisture removal		Liters/h	0.78
Pressure	High(DP)	MPa	2.8
Pressure	Low(SP)	MPa	1.2
Indoor noise level at cooling	High	dB(A)	39
	Med.	dB(A)	34
	Low	dB(A)	22
Outdoor noise level		dB(A)	49

Power supply
Voltage Range		V	198~242
Rated current	Cooling	A	4.4
Rated current	Heating	A	4
Rated input	Cooling	W	947
Rated input	Heating	W	936
Annual energy consumption		kwh (cooling)
Max Current	Cooling	A	7.09
Max Current	Heating	A	N.A
Max Power input	Cooling	W	1337
Max Power input	Heating	W	N.A

Refrigerant/Charge		Gram	R22
Compressor	Type		Rotary
	Model		QX-B160C130
	LRA	A	/
	MFG		GREE
Evaporator
Condenser
Expansion device
Defrosting system

Indoor air circulation(Cooling/Heating)		m3/h	430/430
Indoor fan type			Cross flow
Indoor fan speed H/M/L	Cooling	rpm	1160/1060/900
	Heating	rpm	1160/1060/900
	Dry	rpm	900
	Sleep	rpm	900
Indoor fan motor output		W	8
Outdoor fan type			Propeller
Outdoor fan speed		rpm	850
Outdoor fan motor output		W	30

Connecting Pipe	Gas	mm	Φ9
Connecting Pipe	Liquid	mm	Φ6
Connecting Wiring	Size x Core number		5*0.75
Drainage Pipe

Suitable area		m2	8~12
Net dimensions (W x H x D)	Indoor	mm	770x250x205
Net dimensions (W x H x D)	Outdoor	mm	700x540x255
Net weight	Indoor	kg	9
Net weight	Outdoor	kg	30
Packing dimensions (W x H x D)	Indoor	mm	830268316
Packing dimensions (W x H x D)	Outdoor	mm	805340590
Gross weight	Indoor	kg	10
Gross weight	Outdoor	kg	32
