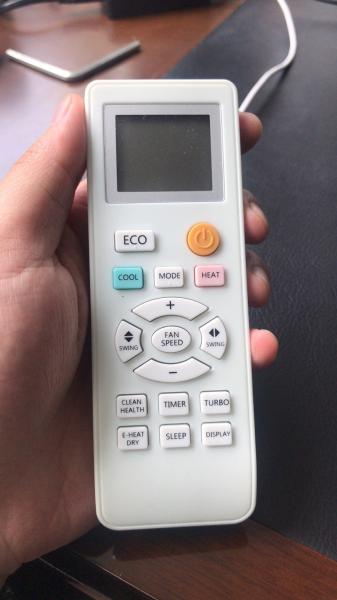

220V 4P Wall Mount Air Conditioner Remote Controller OEM ODM

Product Categories

ninghua Yuetu Technology Co., Ltd

Contact Now

Name: 220V 4P Wall Mount Air Conditioner Remote Controller OEM ODM
Brand: Yuetu or OEM
Price: 100 USD

Brand Name : Yuetu or OEM

Model Number : 90000btu/12000btu/18000btu/24000btu/30000btu

Certification : CE/CB

Place of Origin : CHINA

MOQ : 100

Price : $100

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000pcs/month

Packaging Details : Factory Standard

Conncet Pipe : 100% Copper Pipe

Compressor : GMCC/Gree

Fan Motor : Welling

Blow : Yes

Quiet : Yes

Name : air conditioner remote controller

Contact Now

220V 4P Wall mount Air Conditioner Remote Controller OEM ODM

Air Conditioner Remote Controller Cooling Heating High Quality Suitable for Gree Models

			12000BTU
Model No.			TAC-12CS/Z
			KF-35GW
			indoor 820(Φ7×2)+outdoor 780(Φ7.94×1)
Type			cooling only
Control type
Rated cooling capacity		Btu/h;W	11535;3381
Rated heating capacity		Btu/h;W	N.A
EER for cooling		Btu/h.w; W/W	2.7
COP for heating		W/W	N.A
Moisture removal		Liters/h	1.3
Pressure	High(DP)	MPa	2.6
Pressure	Low(SP)	MPa	1
Indoor noise level at cooling	High	dB(A)	41
	Med.	dB(A)	37
	Low	dB(A)	24
Outdoor noise level		dB(A)	52

Power supply
Voltage Range		V	198~242
Rated current	Cooling	A	5.8
Rated current	Heating	A	N.A
Rated input	Cooling	W	1253
Rated input	Heating	W	N.A
Annual energy consumption		kwh (cooling)
Max Current	Cooling	A	9.8
Max Current	Heating	A	N.A
Max Power input	Cooling	W	1790
Max Power input	Heating	W	N.A

Refrigerant/Charge		Gram	R22
Compressor	Type		Rotary
	Model		C-RV212H92CB/QX-B217E030A
	LRA	A	/
	MFG		SANYO/GREE

Indoor air circulation(Cooling/Heating)		m3/h	530
Indoor fan type			Cross Flow
Indoor fan speed H/M/L	Cooling	rpm	1290/1150/900
	Heating	rpm	N.A
	Dry	rpm	900
	Sleep	rpm	900
Indoor fan motor output		W	13
Outdoor fan type			Propeller
Outdoor fan speed		rpm	850
Outdoor fan motor output		W	30

Connecting Pipe	Gas	mm	Φ12
Connecting Pipe	Liquid	mm	Φ6
Connecting Wiring	Size x Core number		1.0*3
Drainage Pipe

Suitable area		m2	12~23
Net dimensions (W x H x D)	Indoor	mm	820x250x205
Net dimensions (W x H x D)	Outdoor	mm	780x540x255
Net weight	Indoor	kg	10
Net weight	Outdoor	kg	31
Packing dimensions (W x H x D)	Indoor	mm	880315269
Packing dimensions (W x H x D)	Outdoor	mm	870340590
Gross weight	Indoor	kg	11
Gross weight	Outdoor	kg	33

Why choose us?

Because of our scientifically designed and developed products, we have been welcomed by customers in a short period of time.

We have achieved complete customer satisfaction due to the following key factors:

High-quality product series

High performance life

Keep delivery on time

Ethical business policy

Custom packaging

Experienced team

Real interest rate
